Detailed Description

Base class for structured block storages (the entire simulation space is partitioned into blocks [see class 'IBlock'], the blocks are partitioned into cells, and structured block storages manage those blocks)

The class 'StructuredBlockStorage' already provides some basic functionality that every structured block storage will possess - regardless of the actual implementation of any derived class. Every structured block storage ...

... encapsulates an object of type BlockStorage and thereby provides the same functionality than the class BlockStorage. For documentation of this functionality see class BlockStorage.
... may have multiple different grid refinement levels.
... possesses an axis-aligned cell bounding box for every grid refinement level. Each of these cell bounding boxes covers the entire simulation space/domain and starts at (0,0,0). A cell bounding box is always represented as a cell interval (see class 'CellInterval').
... knows the cell size dx/dy/dz (these three values may be identical) of each grid refinement level.
... provides a mechanism for adding a cell bounding box to every block as a block data "item" (see member function "createCellBoundingBoxes()"). This cell bounding box represents the region within the global cell coordinate space that is covered by this block. The cell bounding box is always given in relation to the grid level the corresponding block is located on (-> every block is required to be assigned to one of the available grid refinement levels, see member function "getLevel( const IBlock& block )").
... provides mapping mechanisms between the cell coordinate space and the underlying 3D simulation space
... provides mapping mechanisms between block local and simulation global cell coordinates (every block has its own local cell coordinate space starting at (0,0,0)).

Structured block storages build upon block storages (see class 'BlockStorage'), every structured block storage encapsulates an object of type BlockStorage (see member function getBlockStorage()). 'StructuredBlockStorage' also acts as an interface class which requires every derived class to implement a set of functions that, for example, can be used to retrieve locally allocated blocks that are located at a certain position within the global cell coordinate space. For more information on which functions must be implemented by a derived class refer to the documentation of the public interface of 'StructuredBlockStorage'.

Attention: Immediately after constructing an instance of a class derived from StructuredBlockStorage the member method "createCellBoundingBoxes()" should be called. Otherwise no block is assigned a cell bounding box and all the transformation methods (-> transforming block local cells to a global cells and vice versa) are not available.

#include <StructuredBlockStorage.h>

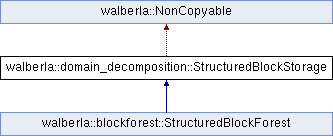

Inheritance diagram for walberla::domain_decomposition::StructuredBlockStorage:

Classes
class	CellBoundingBoxHandling

class	StructuredBlockDataAdder
	helper class for adding multiple block data initialization functions More...

Public Types
using	const_iterator = BlockStorage::const_iterator

using	iterator = BlockStorage::iterator

Public Member Functions
const BlockStorage &	getBlockStorage () const

BlockStorage &	getBlockStorage ()

const shared_ptr< BlockStorage > &	getBlockStoragePointer ()

shared_ptr< const BlockStorage >	getBlockStoragePointer () const

uint_t	getNumberOfLevels () const

bool	operator== (const StructuredBlockStorage &rhs) const
	The following members are not used for checking if two StructuredBlockStorage objects are equal: blockCellBBId_. More...

bool	operator!= (const StructuredBlockStorage &rhs) const

const AABB &	getDomain () const

bool	isXPeriodic () const

bool	isYPeriodic () const

bool	isZPeriodic () const

bool	isPeriodic (const uint_t index) const

void	mapToPeriodicDomain (real_t &x, real_t &y, real_t &z) const

void	mapToPeriodicDomain (Vector3< real_t > &p) const

bool	periodicIntersect (const math::AABB &box1, const math::AABB &box2) const

bool	periodicIntersect (const math::AABB &box1, const math::AABB &box2, const real_t _dx) const

iterator	begin (const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet())

iterator	end ()

const_iterator	begin (const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet()) const

const_iterator	end () const

uint_t	getNumberOfBlocks () const

uint_t	size () const

bool	empty () const

void	getBlocks (std::vector< const IBlock * > &blocks) const

void	getBlocks (std::vector< IBlock * > &blocks)

void	getBlocksContainedWithinAABB (std::vector< const IBlock * > &blocks, const AABB &aabb) const

void	getBlocksContainedWithinAABB (std::vector< IBlock * > &blocks, const AABB &aabb)

void	getBlocksOverlappedByAABB (std::vector< const IBlock * > &blocks, const AABB &aabb) const

void	getBlocksOverlappedByAABB (std::vector< IBlock * > &blocks, const AABB &aabb)

const IBlock *	getBlock (const IBlockID &id) const

IBlock *	getBlock (const IBlockID &id)

const IBlock *	getBlock (const IBlockID::IDType &id) const

IBlock *	getBlock (const IBlockID::IDType &id)

const IBlock *	getBlock (const real_t x, const real_t y, const real_t z) const

IBlock *	getBlock (const real_t x, const real_t y, const real_t z)

const IBlock *	getBlock (const Vector3< real_t > &p) const

IBlock *	getBlock (const Vector3< real_t > &p)

bool	containsGlobalBlockInformation () const

void	getAllBlocks (std::vector< shared_ptr< IBlockID > > &blocks) const

bool	blockExists (const real_t x, const real_t y, const real_t z) const

bool	blockExistsLocally (const real_t x, const real_t y, const real_t z) const

bool	blockExistsRemotely (const real_t x, const real_t y, const real_t z) const

bool	blockExists (const Vector3< real_t > &p) const

bool	blockExistsLocally (const Vector3< real_t > &p) const

bool	blockExistsRemotely (const Vector3< real_t > &p) const

bool	blockExists (const IBlockID &id) const

bool	blockExistsLocally (const IBlockID &id) const

bool	blockExistsRemotely (const IBlockID &id) const

void	getBlockID (IBlockID &id, const real_t x, const real_t y, const real_t z) const

void	getBlockID (IBlockID &id, const Vector3< real_t > &p) const

AABB	getAABB (const IBlockID &id) const

Set< SUID >	getState (const IBlockID &id) const

uint_t	getProcessRank (const IBlockID &id) const

void	getAABB (AABB &aabb, const IBlockID &id) const

void	getState (Set< SUID > &state, const IBlockID &id) const

void	getProcessRank (uint_t &rank, const IBlockID &id) const

bool	atDomainXMinBorder (const IBlock &block) const

bool	atDomainXMaxBorder (const IBlock &block) const

bool	atDomainYMinBorder (const IBlock &block) const

bool	atDomainYMaxBorder (const IBlock &block) const

bool	atDomainZMinBorder (const IBlock &block) const

bool	atDomainZMaxBorder (const IBlock &block) const

bool	atDomainMinBorder (const uint_t index, const IBlock &block) const

bool	atDomainMaxBorder (const uint_t index, const IBlock &block) const

const std::vector< uint_t > &	getNeighboringProcesses () const

std::map< uint_t, std::vector< Vector3< real_t > > >	getNeighboringProcessOffsets () const

internal::BlockDataHandlingAdder	addBlockData (const std::string &identifier=std::string())

template<typename T >
BlockDataID	addBlockData (const shared_ptr< T > &dataHandling, const std::string &identifier=std::string(), const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet())

template<typename T >
BlockDataID	addBlockData (std::function< T (IBlock const block) > function, const std::string &identifier=std::string(), const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet())

template<typename T >
BlockDataID	loadBlockData (const std::string &file, const shared_ptr< T > &dataHandling, const std::string &identifier=std::string(), const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet())

void	saveBlockData (const std::string &file, const BlockDataID &id)

void	serializeBlockData (const BlockDataID &id, mpi::SendBuffer &buffer)

void	deserializeBlockData (const BlockDataID &id, mpi::RecvBuffer &buffer)

void	clearBlockData (const BlockDataID &id)

uint_t	numberOfBlockDataItems () const

std::vector< std::string >	getBlockDataIdentifiers () const

const std::string &	getBlockDataIdentifier (const ConstBlockDataID &id) const

const CellInterval &	getDomainCellBB (const uint_t level=0) const
	the global cell coordinate space of the simulation on level "level" More...

uint_t	getNumberOfXCells (const uint_t level=0) const
	number of global cells in x direction (within the simulation domain on level "level") More...

uint_t	getNumberOfYCells (const uint_t level=0) const
	number of global cells in y direction (within the simulation domain on level "level") More...

uint_t	getNumberOfZCells (const uint_t level=0) const
	number of global cells in z direction (within the simulation domain on level "level") More...

uint_t	getNumberOfCells (const uint_t index, const uint_t level=0) const
	number of global cells in x/y/z direction (within the simulation domain on level "level") More...

void	mapToPeriodicDomain (Cell &cell, const uint_t level=0) const
	This function can be used to transform any cell on level "level" into the periodic cell simulation space. More...

Cell	getCell (const real_t x, const real_t y, const real_t z, const uint_t level=0) const
	For documentation see member function "void getCell( Cell & cell, const real_t x, const real_t y, const real_t z, const uint_t level ) const". More...

Cell	getCell (const Vector3< real_t > &p, const uint_t level=0) const

void	getCell (Cell &cell, const real_t x, const real_t y, const real_t z, const uint_t level=0) const
	Maps any point in 3D space to a cell coordinate within the global cell coordinate space on level "level". More...

void	getCell (Cell &cell, const Vector3< real_t > &p, const uint_t level=0) const

Vector3< real_t >	getCellCenter (const Cell &cell, const uint_t level=0) const
	For documentation see member function "void getCellCenter( real_t & x, real_t & y, real_t & z, const Cell & cell, const uint_t level ) const". More...

void	getCellCenter (real_t &x, real_t &y, real_t &z, const Cell &cell, const uint_t level=0) const
	Returns the location (within the global 3D simulation space) of the center of cell "cell" on level "level". More...

void	getCellCenter (Vector3< real_t > &p, const Cell &cell, const uint_t level=0) const

AABB	getCellAABB (const Cell &cell, const uint_t level=0) const
	For documentation see member function "void getCellAABB( AABB& aabb, const Cell& cell, const uint_t level ) const". More...

void	getCellAABB (AABB &aabb, const Cell &cell, const uint_t level=0) const
	Returns the axis-aligned bounding box (with respect to the global 3D simulation space) that covers the cell "cell" on level "level". More...

CellInterval	getCellBBFromAABB (const AABB &aabb, const uint_t level=0) const
	For documentation see member function "void getCellBBFromAABB( CellInterval& cellBB, const AABB& aabb, const uint_t level ) const". More...

CellInterval	getCellBBFromCellAlignedAABB (const AABB &aabb, const uint_t level=0) const
	For documentation see member function "void getCellBBFromCellAlignedAABB( CellInterval& cellBB, const AABB& aabb, const uint_t level ) const". More...

void	getCellBBFromAABB (CellInterval &cellBB, const AABB &aabb, const uint_t level=0) const
	Transforms any axis-aligned bounding box within the 3D simulation space into a cell bounding box with respect to the grid refinement level "level". More...

void	getCellBBFromCellAlignedAABB (CellInterval &cellBB, const AABB &aabb, const uint_t level=0) const
	Transforms an axis-aligned bounding box within the 3D simulation space that is perfectly aligned with the overlaying cell grid on grid refinement level "level" into a cell bounding box. More...

bool	isCellAlignedAABB (const AABB &aabb, const uint_t level=0) const
	Checks whether a given axis-aligned bounding box is aligned with the overlaying cell grid on level "level". More...

AABB	getAABBFromCellBB (const CellInterval &cellBB, const uint_t level=0) const
	For documentation see member function "void getAABBFromCellBB( AABB& aabb, const CellInterval& cellBB, const uint_t level ) const". More...

void	getAABBFromCellBB (AABB &aabb, const CellInterval &cellBB, const uint_t level=0) const
	Returns an axis-aligned bounding box within the 3D simulation space that covers the area defined by the cell bounding box "cellBB" on level "level". More...

const IBlock *	getBlock (const Cell &cell, const uint_t level=0) const
	Returns the block located at global cell coordinate "cell" on grid level "level" (returns 'NULL' if the block doesn't exist locally!). More...

IBlock *	getBlock (const Cell &cell, const uint_t level=0)
	Returns the block located at global cell coordinate "cell" on grid level "level" (returns 'NULL' if the block doesn't exist locally!). More...

virtual bool	blockExists (const Cell &cell, const uint_t level=0) const =0
	Returns true if there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'. More...

virtual bool	blockExistsLocally (const Cell &cell, const uint_t level=0) const =0
	Returns true if locally there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'. More...

virtual bool	blockExistsRemotely (const Cell &cell, const uint_t level=0) const =0
	Returns true if remotely there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'. More...

virtual void	getBlockID (IBlockID &id, const Cell &cell, const uint_t level=0) const =0
	Returns the block ID that corresponds to the block located on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'. More...

virtual uint_t	getLevel (const IBlock &block) const =0
	must return the level the block "block" is assigned to (must be an unsigned integer in the range [0,'number-of-levels') ) More...

void	createCellBoundingBoxes ()
	Adds a cell bounding box to every block as a block data "item". More...

ConstBlockDataID	getBlockCellBBId () const
	Returns the block data ID required for accessing the cell bounding box of blocks - fails in debug mode if no block cell bounding boxes have been created via "createCellBoundingBoxes()". More...

const CellInterval &	getBlockCellBB (const IBlock &block) const
	Returns the cell bounding box of block "block". More...

virtual uint_t	getNumberOfXCells (const IBlock &block) const =0
	number of local cells of block "block" in x direction More...

virtual uint_t	getNumberOfYCells (const IBlock &block) const =0
	number of local cells of block "block" in y direction More...

virtual uint_t	getNumberOfZCells (const IBlock &block) const =0
	number of local cells of block "block" in z direction More...

virtual uint_t	getNumberOfCells (const IBlock &block, const uint_t index) const =0
	number of local cells of block "block" in x/y/z direction More...

Cell	getBlockLocalCell (const IBlock &block, const real_t x, const real_t y, const real_t z) const
	For documentation see member function "void getBlockLocalCell( Cell& localCell, const IBlock& block, const real_t x, const real_t y, const real_t z ) const". More...

Cell	getBlockLocalCell (const IBlock &block, const Vector3< real_t > &p) const

void	getBlockLocalCell (Cell &localCell, const IBlock &block, const real_t x, const real_t y, const real_t z) const
	Maps any point in 3D space to a cell coordinate within the local cell coordinate space of the block "block". More...

void	getBlockLocalCell (Cell &localCell, const IBlock &block, const Vector3< real_t > &p) const

Vector3< real_t >	getBlockLocalCellCenter (const IBlock &block, const Cell &localCell) const
	For documentation see member function "void getBlockLocalCellCenter( const IBlock & block, const Cell & localCell, real_t & x, real_t & y, real_t & z ) const". More...

void	getBlockLocalCellCenter (const IBlock &block, const Cell &localCell, real_t &x, real_t &y, real_t &z) const
	Returns the location (within the global 3D simulation space) of the center of block "block"s local cell "localCell". More...

void	getBlockLocalCellCenter (const IBlock &block, const Cell &localCell, Vector3< real_t > &p) const

AABB	getBlockLocalCellAABB (const IBlock &block, const Cell &localCell) const
	For documentation see member function "void getBlockLocalCellAABB( const IBlock & block, const Cell & localCell, AABB & aabb ) const". More...

void	getBlockLocalCellAABB (const IBlock &block, const Cell &localCell, AABB &aabb) const
	Returns the axis-aligned bounding box (with respect to the global 3D simulation space) that covers block "block"s local cell "localCell". More...

void	transformGlobalToBlockLocal (Vector3< real_t > &local, const IBlock &block, const Vector3< real_t > &global) const
	Transforms a global point "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local point "local". More...

void	transformGlobalToBlockLocal (Vector3< real_t > &point, const IBlock &block) const
	Transforms a global point (assumed to be located on the same grid level than the block "block" resides on) into a block local point. More...

void	transformBlockLocalToGlobal (Vector3< real_t > &global, const IBlock &block, const Vector3< real_t > &local) const
	Transforms the block local point "local" into the global point "global" (the global point is given with respect to the grid level the block "block" resides on). More...

void	transformBlockLocalToGlobal (Vector3< real_t > &point, const IBlock &block) const
	Transforms a block local point into a global point (the global point is given with respect to the grid level the block "block" resides on). More...

void	transformGlobalToBlockLocalCell (Cell &local, const IBlock &block, const Cell &global) const
	Transforms the global cell coordinate "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local cell coordinate "local". More...

void	transformGlobalToBlockLocalCell (Cell &cell, const IBlock &block) const
	Transforms a global cell coordinate (assumed to be located on the same grid level than the block "block" resides on) into a block local cell coordinate. More...

void	transformBlockLocalToGlobalCell (Cell &global, const IBlock &block, const Cell &local) const
	Transforms the block local cell coordinate "local" into the global cell coordinate "global" (the global cell is given with respect to the grid level the block "block" resides on). More...

void	transformBlockLocalToGlobalCell (Cell &cell, const IBlock &block) const
	Transforms a block local cell coordinate into a global cell coordinate (the global cell is given with respect to the grid level the block "block" resides on). More...

void	transformGlobalToBlockLocalCellInterval (CellInterval &local, const IBlock &block, const CellInterval &global) const
	Transforms the global cell interval "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local cell interval "local". More...

void	transformGlobalToBlockLocalCellInterval (CellInterval &interval, const IBlock &block) const
	Transforms a global cell interval (assumed to be located on the same grid level than the block "block" resides on) into a block local cell interval. More...

void	transformBlockLocalToGlobalCellInterval (CellInterval &global, const IBlock &block, const CellInterval &local) const
	Transforms the block local cell interval "local" into the global cell interval "global" (the global cell interval is given with respect to the grid level the block "block" resides on). More...

void	transformBlockLocalToGlobalCellInterval (CellInterval &interval, const IBlock &block) const
	Transforms a block local cell interval into a global cell interval (the global cell interval is given with respect to the grid level the block "block" resides on). More...

StructuredBlockDataAdder	addStructuredBlockData (const std::string &identifier=std::string())
	Must be used if multiple initialization functions with different selection attributes are registered for initializing the same block data "item". More...

template<typename T >
BlockDataID	addStructuredBlockData (std::function< T (IBlock const block, StructuredBlockStorage *const storage) > function, const std::string &identifier=std::string(), const Set< SUID > &requiredSelectors=Set< SUID >::emptySet(), const Set< SUID > &incompatibleSelectors=Set< SUID >::emptySet())
	This function can be used for initializing a new block data "item". More...

Protected Member Functions
	StructuredBlockStorage (const shared_ptr< BlockStorage > &blockStorage, const std::vector< uint_t > &xCells, const std::vector< uint_t > &yCells, const std::vector< uint_t > &zCells)
	Every derived class must call this constructor! More...

virtual	~StructuredBlockStorage ()=default
	Must not be made public! No one should be allowed to delete a variable of type 'StructuredBlockStorage*'. More...

void	resetCellDecomposition (const std::vector< uint_t > &xCells, const std::vector< uint_t > &yCells, const std::vector< uint_t > &zCells)

virtual bool	equal (const StructuredBlockStorage *rhs) const =0

CellInterval *	initializeCellBoundingBox (IBlock *const block) const

virtual BlockDataID	addCellBoundingBoxesAsBlockData (const std::string &identifier)

Private Member Functions
	StructuredBlockStorage ()
	Must not be made public or protected! Derived classes must call one of the available public/protected constructors. More...

Private Member Functions inherited from walberla::NonCopyable
	NonCopyable ()=default

	~NonCopyable ()=default

Private Attributes
shared_ptr< BlockStorage >	blockStorage_
	reference to an encapsulated object of type class BlockStorage (the object itself must be stored as a member in the derived class) More...

uint_t	levels_
	number of different grid levels managed by this block storage (every grid level has its own cell size dx/dy/dz) More...

std::vector< CellInterval >	domainCellBB_
	cell bounding box for the entire simulation domain for every level (always starts at (0,0,0)) [min & max included!] More...

std::vector< real_t >	dx_
	for every level: ( domain x width ) / ( number of cells in x direction ) More...

std::vector< real_t >	dy_
	for every level: ( domain y width ) / ( number of cells in y direction ) More...

std::vector< real_t >	dz_
	for every level: ( domain z width ) / ( number of cells in z direction ) More...

bool	blockCellBBCreated_
	flag for checking whether or not a cell bounding box has already been added as a block data "item" to all blocks More...

BlockDataID	blockCellBBId_
	block data ID for accessing a block's cell bounding box More...

Friends
class	CellBoundingBoxHandling

Member Typedef Documentation

◆ const_iterator

using walberla::domain_decomposition::StructuredBlockStorage::const_iterator = BlockStorage::const_iterator

◆ iterator

using walberla::domain_decomposition::StructuredBlockStorage::iterator = BlockStorage::iterator

Constructor & Destructor Documentation

◆ StructuredBlockStorage() [1/2]

walberla::domain_decomposition::StructuredBlockStorage::StructuredBlockStorage	(	const shared_ptr< BlockStorage > &	blockStorage,
		const std::vector< uint_t > &	xCells,
		const std::vector< uint_t > &	yCells,
		const std::vector< uint_t > &	zCells
	)

protected

Every derived class must call this constructor!

◆ ~StructuredBlockStorage()

virtual walberla::domain_decomposition::StructuredBlockStorage::~StructuredBlockStorage ( )

protectedvirtualdefault

Must not be made public! No one should be allowed to delete a variable of type 'StructuredBlockStorage*'.

◆ StructuredBlockStorage() [2/2]

walberla::domain_decomposition::StructuredBlockStorage::StructuredBlockStorage ( )

private

Must not be made public or protected! Derived classes must call one of the available public/protected constructors.

Member Function Documentation

◆ addBlockData() [1/3]

template<typename T >

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::addBlockData	(	const shared_ptr< T > &	dataHandling,
		const std::string &	identifier = `std::string()`,
		const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)

inline

◆ addBlockData() [2/3]

internal::BlockDataHandlingAdder walberla::domain_decomposition::StructuredBlockStorage::addBlockData ( const std::string & identifier = std::string() )

inline

◆ addBlockData() [3/3]

template<typename T >

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::addBlockData	(	std::function< T (IBlock const block) >	function,
		const std::string &	identifier = `std::string()`,
		const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)

inline

◆ addCellBoundingBoxesAsBlockData()

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::addCellBoundingBoxesAsBlockData ( const std::string & identifier )

inlineprotectedvirtual

Reimplemented in walberla::blockforest::StructuredBlockForest.

◆ addStructuredBlockData() [1/2]

StructuredBlockDataAdder walberla::domain_decomposition::StructuredBlockStorage::addStructuredBlockData ( const std::string & identifier = std::string() )

inline

Must be used if multiple initialization functions with different selection attributes are registered for initializing the same block data "item".

A 'BlockDataID' that corresponds to this block data "item" is returned. "BlockDataCreator" and "StructuredBlockDataCreator" structures may be mixed.

Usage: BlockDataID id = blockStorage.addBlockData( "[optional block data identifier]" ) << StructuredBlockDataCreator( ... ) << BlockDataCreator( ... ) << ... ;

◆ addStructuredBlockData() [2/2]

template<typename T >

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::addStructuredBlockData	(	std::function< T (IBlock const block, StructuredBlockStorage *const storage) >	function,
		const std::string &	identifier = `std::string()`,
		const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)

inline

This function can be used for initializing a new block data "item".

A 'BlockDataID' that corresponds to this block data "item" is returned. This block data ID must be used to access/retrieve block data (see function 'getData' of class 'IBlock'). If multiple initialization functions with different selection attributes shall be used for initializing the same block data "item" see member function "addStructuredBlockData( const std::string& identifier )"

◆ atDomainMaxBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainMaxBorder	(	const uint_t	index,
		const IBlock &	block
	)		const

inline

◆ atDomainMinBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainMinBorder	(	const uint_t	index,
		const IBlock &	block
	)		const

inline

◆ atDomainXMaxBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainXMaxBorder ( const IBlock & block ) const

inline

◆ atDomainXMinBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainXMinBorder ( const IBlock & block ) const

inline

◆ atDomainYMaxBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainYMaxBorder ( const IBlock & block ) const

inline

◆ atDomainYMinBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainYMinBorder ( const IBlock & block ) const

inline

◆ atDomainZMaxBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainZMaxBorder ( const IBlock & block ) const

inline

◆ atDomainZMinBorder()

bool walberla::domain_decomposition::StructuredBlockStorage::atDomainZMinBorder ( const IBlock & block ) const

inline

◆ begin() [1/2]

iterator walberla::domain_decomposition::StructuredBlockStorage::begin	(	const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)

inline

◆ begin() [2/2]

const_iterator walberla::domain_decomposition::StructuredBlockStorage::begin	(	const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)		const

inline

◆ blockExists() [1/4]

virtual bool walberla::domain_decomposition::StructuredBlockStorage::blockExists	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

pure virtual

Returns true if there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'.

]. This member function is guaranteed to work properly only if 'containsGlobalBlockInformation() == true'.

Implemented in walberla::blockforest::StructuredBlockForest.

◆ blockExists() [2/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExists ( const IBlockID & id ) const

inline

◆ blockExists() [3/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExists	(	const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

◆ blockExists() [4/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExists ( const Vector3< real_t > & p ) const

inline

◆ blockExistsLocally() [1/4]

virtual bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsLocally	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

pure virtual

Returns true if locally there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'.

]. This member function is always guaranteed to work properly, even if 'containsGlobalBlockInformation() == false'.

Implemented in walberla::blockforest::StructuredBlockForest.

◆ blockExistsLocally() [2/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsLocally ( const IBlockID & id ) const

inline

◆ blockExistsLocally() [3/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsLocally	(	const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

◆ blockExistsLocally() [4/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsLocally ( const Vector3< real_t > & p ) const

inline

◆ blockExistsRemotely() [1/4]

virtual bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsRemotely	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

pure virtual

Returns true if remotely there exists a block on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'.

]. This member function is guaranteed to work properly only if 'containsGlobalBlockInformation() == true'.

Implemented in walberla::blockforest::StructuredBlockForest.

◆ blockExistsRemotely() [2/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsRemotely ( const IBlockID & id ) const

inline

◆ blockExistsRemotely() [3/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsRemotely	(	const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

◆ blockExistsRemotely() [4/4]

bool walberla::domain_decomposition::StructuredBlockStorage::blockExistsRemotely ( const Vector3< real_t > & p ) const

inline

◆ clearBlockData()

void walberla::domain_decomposition::StructuredBlockStorage::clearBlockData ( const BlockDataID & id )

inline

◆ containsGlobalBlockInformation()

bool walberla::domain_decomposition::StructuredBlockStorage::containsGlobalBlockInformation ( ) const

inline

◆ createCellBoundingBoxes()

void walberla::domain_decomposition::StructuredBlockStorage::createCellBoundingBoxes ( )

Adds a cell bounding box to every block as a block data "item".

For accessing this cell bounding box see member functions "getBlockCellBBId()" and "getBlockCellBB( [const] IBlock& block )".

◆ deserializeBlockData()

void walberla::domain_decomposition::StructuredBlockStorage::deserializeBlockData	(	const BlockDataID &	id,
		mpi::RecvBuffer &	buffer
	)

inline

◆ empty()

bool walberla::domain_decomposition::StructuredBlockStorage::empty ( ) const

inline

◆ end() [1/2]

iterator walberla::domain_decomposition::StructuredBlockStorage::end ( )

inline

◆ end() [2/2]

const_iterator walberla::domain_decomposition::StructuredBlockStorage::end ( ) const

inline

◆ equal()

virtual bool walberla::domain_decomposition::StructuredBlockStorage::equal ( const StructuredBlockStorage * rhs ) const

protectedpure virtual

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getAABB	(	AABB &	aabb,
		const IBlockID &	id
	)		const

inline

◆ getAABB() [2/2]

AABB walberla::domain_decomposition::StructuredBlockStorage::getAABB ( const IBlockID & id ) const

inline

◆ getAABBFromCellBB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getAABBFromCellBB	(	AABB &	aabb,
		const CellInterval &	cellBB,
		const uint_t	level = `0`
	)		const

Returns an axis-aligned bounding box within the 3D simulation space that covers the area defined by the cell bounding box "cellBB" on level "level".

◆ getAABBFromCellBB() [2/2]

AABB walberla::domain_decomposition::StructuredBlockStorage::getAABBFromCellBB	(	const CellInterval &	cellBB,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getAABBFromCellBB( AABB& aabb, const CellInterval& cellBB, const uint_t level ) const".

◆ getAllBlocks()

void walberla::domain_decomposition::StructuredBlockStorage::getAllBlocks ( std::vector< shared_ptr< IBlockID > > & blocks ) const

inline

◆ getBlock() [1/10]

IBlock * walberla::domain_decomposition::StructuredBlockStorage::getBlock	(	const Cell &	cell,
		const uint_t	level = `0`
	)

inline

Returns the block located at global cell coordinate "cell" on grid level "level" (returns 'NULL' if the block doesn't exist locally!).

Attention: Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see member function 'mapToPeriodicDomain'.

◆ getBlock() [2/10]

const IBlock * walberla::domain_decomposition::StructuredBlockStorage::getBlock	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

Returns the block located at global cell coordinate "cell" on grid level "level" (returns 'NULL' if the block doesn't exist locally!).

Attention: Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see member function 'mapToPeriodicDomain'.

◆ getBlock() [3/10]

IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const IBlockID & id )

inline

◆ getBlock() [4/10]

const IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const IBlockID & id ) const

inline

◆ getBlock() [5/10]

IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const IBlockID::IDType & id )

inline

◆ getBlock() [6/10]

const IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const IBlockID::IDType & id ) const

inline

◆ getBlock() [7/10]

IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock	(	const real_t	x,
		const real_t	y,
		const real_t	z
	)

inline

◆ getBlock() [8/10]

const IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock	(	const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

◆ getBlock() [9/10]

IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const Vector3< real_t > & p )

inline

◆ getBlock() [10/10]

const IBlock* walberla::domain_decomposition::StructuredBlockStorage::getBlock ( const Vector3< real_t > & p ) const

inline

◆ getBlockCellBB()

const CellInterval & walberla::domain_decomposition::StructuredBlockStorage::getBlockCellBB ( const IBlock & block ) const

inline

Returns the cell bounding box of block "block".

In debug mode: fails if no block cell bounding boxes have been created via "createCellBoundingBoxes()".

Remember: Every block resides on exactly one grid level, and all blocks managed by a structured block storage are assigned a corresponding cell bounding box as block data once "createCellBoundingBoxes()" is called.

◆ getBlockCellBBId()

ConstBlockDataID walberla::domain_decomposition::StructuredBlockStorage::getBlockCellBBId ( ) const

inline

Returns the block data ID required for accessing the cell bounding box of blocks - fails in debug mode if no block cell bounding boxes have been created via "createCellBoundingBoxes()".

(remember: every block resides on exactly one grid level, and all blocks managed by a

◆ getBlockDataIdentifier()

const std::string& walberla::domain_decomposition::StructuredBlockStorage::getBlockDataIdentifier ( const ConstBlockDataID & id ) const

inline

◆ getBlockDataIdentifiers()

std::vector< std::string > walberla::domain_decomposition::StructuredBlockStorage::getBlockDataIdentifiers ( ) const

inline

◆ getBlockID() [1/3]

virtual void walberla::domain_decomposition::StructuredBlockStorage::getBlockID	(	IBlockID &	id,
		const Cell &	cell,
		const uint_t	level = `0`
	)		const

pure virtual

Returns the block ID that corresponds to the block located on level "level" at cell coordinate "cell" [Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see 'mapToPeriodicDomain'.

]. For local blocks, this function is always guaranteed to work. For remote blocks, this function is guaranteed to work properly only if 'containsGlobalBlockInformation() == true'. If the request cannot be satisfied (for example if no block exists on level "level" at cell coordinate "cell"), the simulation must be aborted and the call to this function must not return!

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getBlockID() [2/3]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockID	(	IBlockID &	id,
		const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

◆ getBlockID() [3/3]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockID	(	IBlockID &	id,
		const Vector3< real_t > &	p
	)		const

inline

◆ getBlockLocalCell() [1/4]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCell	(	Cell &	localCell,
		const IBlock &	block,
		const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

Maps any point in 3D space to a cell coordinate within the local cell coordinate space of the block "block".

Points located on any of the three "min" faces of a cell (= the three faces that include the lower left/min corner of the cell) are considered to be part of the cell - points located on any of the three "max" faces are NOT!

◆ getBlockLocalCell() [2/4]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCell	(	Cell &	localCell,
		const IBlock &	block,
		const Vector3< real_t > &	p
	)		const

inline

◆ getBlockLocalCell() [3/4]

Cell walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCell	(	const IBlock &	block,
		const real_t	x,
		const real_t	y,
		const real_t	z
	)		const

inline

For documentation see member function "void getBlockLocalCell( Cell& localCell, const IBlock& block, const real_t x, const real_t y, const real_t z ) const".

◆ getBlockLocalCell() [4/4]

Cell walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCell	(	const IBlock &	block,
		const Vector3< real_t > &	p
	)		const

inline

◆ getBlockLocalCellAABB() [1/2]

AABB walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCellAABB	(	const IBlock &	block,
		const Cell &	localCell
	)		const

inline

For documentation see member function "void getBlockLocalCellAABB( const IBlock & block, const Cell & localCell, AABB & aabb ) const".

◆ getBlockLocalCellAABB() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCellAABB	(	const IBlock &	block,
		const Cell &	localCell,
		AABB &	aabb
	)		const

inline

Returns the axis-aligned bounding box (with respect to the global 3D simulation space) that covers block "block"s local cell "localCell".

◆ getBlockLocalCellCenter() [1/3]

Vector3< real_t > walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCellCenter	(	const IBlock &	block,
		const Cell &	localCell
	)		const

inline

For documentation see member function "void getBlockLocalCellCenter( const IBlock & block, const Cell & localCell, real_t & x, real_t & y, real_t & z ) const".

◆ getBlockLocalCellCenter() [2/3]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCellCenter	(	const IBlock &	block,
		const Cell &	localCell,
		real_t &	x,
		real_t &	y,
		real_t &	z
	)		const

inline

Returns the location (within the global 3D simulation space) of the center of block "block"s local cell "localCell".

◆ getBlockLocalCellCenter() [3/3]

void walberla::domain_decomposition::StructuredBlockStorage::getBlockLocalCellCenter	(	const IBlock &	block,
		const Cell &	localCell,
		Vector3< real_t > &	p
	)		const

inline

◆ getBlocks() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocks ( std::vector< const IBlock * > & blocks ) const

inline

◆ getBlocks() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocks ( std::vector< IBlock * > & blocks )

inline

◆ getBlocksContainedWithinAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocksContainedWithinAABB	(	std::vector< const IBlock * > &	blocks,
		const AABB &	aabb
	)		const

inline

◆ getBlocksContainedWithinAABB() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocksContainedWithinAABB	(	std::vector< IBlock * > &	blocks,
		const AABB &	aabb
	)

inline

◆ getBlocksOverlappedByAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocksOverlappedByAABB	(	std::vector< const IBlock * > &	blocks,
		const AABB &	aabb
	)		const

inline

◆ getBlocksOverlappedByAABB() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getBlocksOverlappedByAABB	(	std::vector< IBlock * > &	blocks,
		const AABB &	aabb
	)

inline

◆ getBlockStorage() [1/2]

BlockStorage& walberla::domain_decomposition::StructuredBlockStorage::getBlockStorage ( )

inline

◆ getBlockStorage() [2/2]

const BlockStorage& walberla::domain_decomposition::StructuredBlockStorage::getBlockStorage ( ) const

inline

◆ getBlockStoragePointer() [1/2]

const shared_ptr< BlockStorage >& walberla::domain_decomposition::StructuredBlockStorage::getBlockStoragePointer ( )

inline

◆ getBlockStoragePointer() [2/2]

shared_ptr< const BlockStorage > walberla::domain_decomposition::StructuredBlockStorage::getBlockStoragePointer ( ) const

inline

◆ getCell() [1/4]

void walberla::domain_decomposition::StructuredBlockStorage::getCell	(	Cell &	cell,
		const real_t	x,
		const real_t	y,
		const real_t	z,
		const uint_t	level = `0`
	)		const

inline

Maps any point in 3D space to a cell coordinate within the global cell coordinate space on level "level".

Points located on any of the three "min" faces of a cell (= the three faces that include the lower left/min corner of the cell) are considered to be part of the cell - points located on any of the three "max" faces are NOT!

[Attention: Periodicity is not considered! For mapping cell coordinates to the periodic simulation space see member function 'mapToPeriodicDomain'.]

◆ getCell() [2/4]

void walberla::domain_decomposition::StructuredBlockStorage::getCell	(	Cell &	cell,
		const Vector3< real_t > &	p,
		const uint_t	level = `0`
	)		const

inline

◆ getCell() [3/4]

Cell walberla::domain_decomposition::StructuredBlockStorage::getCell	(	const real_t	x,
		const real_t	y,
		const real_t	z,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getCell( Cell & cell, const real_t x, const real_t y, const real_t z, const uint_t level ) const".

◆ getCell() [4/4]

Cell walberla::domain_decomposition::StructuredBlockStorage::getCell	(	const Vector3< real_t > &	p,
		const uint_t	level = `0`
	)		const

inline

◆ getCellAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getCellAABB	(	AABB &	aabb,
		const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

Returns the axis-aligned bounding box (with respect to the global 3D simulation space) that covers the cell "cell" on level "level".

◆ getCellAABB() [2/2]

AABB walberla::domain_decomposition::StructuredBlockStorage::getCellAABB	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getCellAABB( AABB& aabb, const Cell& cell, const uint_t level ) const".

◆ getCellBBFromAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getCellBBFromAABB	(	CellInterval &	cellBB,
		const AABB &	aabb,
		const uint_t	level = `0`
	)		const

Transforms any axis-aligned bounding box within the 3D simulation space into a cell bounding box with respect to the grid refinement level "level".

Attention: If you know that your axis-aligned bounding box is perfectly aligned with the cell grid you should use the member function "getCellBBFromCellAlignedAABB" in order to be save from floating point inaccuracies.

◆ getCellBBFromAABB() [2/2]

CellInterval walberla::domain_decomposition::StructuredBlockStorage::getCellBBFromAABB	(	const AABB &	aabb,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getCellBBFromAABB( CellInterval& cellBB, const AABB& aabb, const uint_t level ) const".

◆ getCellBBFromCellAlignedAABB() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::getCellBBFromCellAlignedAABB	(	CellInterval &	cellBB,
		const AABB &	aabb,
		const uint_t	level = `0`
	)		const

Transforms an axis-aligned bounding box within the 3D simulation space that is perfectly aligned with the overlaying cell grid on grid refinement level "level" into a cell bounding box.

Attention: This function should only be used if the corners of the axis-aligned bounding box "aabb" are located precisely on the border between eight cells (see member function "isCellAlignedAABB" for checking whether a given axis-aligned bounding box is aligned with the overlaying cell grid or not). For transforming arbitrary axis-aligned bounding boxes see member function "getCellBBFromAABB".

◆ getCellBBFromCellAlignedAABB() [2/2]

CellInterval walberla::domain_decomposition::StructuredBlockStorage::getCellBBFromCellAlignedAABB	(	const AABB &	aabb,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getCellBBFromCellAlignedAABB( CellInterval& cellBB, const AABB& aabb, const uint_t level ) const".

◆ getCellCenter() [1/3]

Vector3< real_t > walberla::domain_decomposition::StructuredBlockStorage::getCellCenter	(	const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

For documentation see member function "void getCellCenter( real_t & x, real_t & y, real_t & z, const Cell & cell, const uint_t level ) const".

◆ getCellCenter() [2/3]

void walberla::domain_decomposition::StructuredBlockStorage::getCellCenter	(	real_t &	x,
		real_t &	y,
		real_t &	z,
		const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

Returns the location (within the global 3D simulation space) of the center of cell "cell" on level "level".

◆ getCellCenter() [3/3]

void walberla::domain_decomposition::StructuredBlockStorage::getCellCenter	(	Vector3< real_t > &	p,
		const Cell &	cell,
		const uint_t	level = `0`
	)		const

inline

◆ getDomain()

const AABB& walberla::domain_decomposition::StructuredBlockStorage::getDomain ( ) const

inline

◆ getDomainCellBB()

const CellInterval & walberla::domain_decomposition::StructuredBlockStorage::getDomainCellBB ( const uint_t level = 0 ) const

inline

the global cell coordinate space of the simulation on level "level"

◆ getLevel()

virtual uint_t walberla::domain_decomposition::StructuredBlockStorage::getLevel ( const IBlock & block ) const

pure virtual

must return the level the block "block" is assigned to (must be an unsigned integer in the range [0,'number-of-levels') )

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getNeighboringProcesses()

const std::vector< uint_t >& walberla::domain_decomposition::StructuredBlockStorage::getNeighboringProcesses ( ) const

inline

◆ getNeighboringProcessOffsets()

std::map< uint_t, std::vector< Vector3<real_t> > > walberla::domain_decomposition::StructuredBlockStorage::getNeighboringProcessOffsets ( ) const

inline

◆ getNumberOfBlocks()

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfBlocks ( ) const

inline

◆ getNumberOfCells() [1/2]

virtual uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfCells	(	const IBlock &	block,
		const uint_t	index
	)		const

pure virtual

number of local cells of block "block" in x/y/z direction

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getNumberOfCells() [2/2]

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfCells	(	const uint_t	index,
		const uint_t	level = `0`
	)		const

inline

number of global cells in x/y/z direction (within the simulation domain on level "level")

◆ getNumberOfLevels()

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfLevels ( ) const

inline

◆ getNumberOfXCells() [1/2]

virtual uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfXCells ( const IBlock & block ) const

pure virtual

number of local cells of block "block" in x direction

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getNumberOfXCells() [2/2]

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfXCells ( const uint_t level = 0 ) const

inline

number of global cells in x direction (within the simulation domain on level "level")

◆ getNumberOfYCells() [1/2]

virtual uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfYCells ( const IBlock & block ) const

pure virtual

number of local cells of block "block" in y direction

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getNumberOfYCells() [2/2]

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfYCells ( const uint_t level = 0 ) const

inline

number of global cells in y direction (within the simulation domain on level "level")

◆ getNumberOfZCells() [1/2]

virtual uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfZCells ( const IBlock & block ) const

pure virtual

number of local cells of block "block" in z direction

Implemented in walberla::blockforest::StructuredBlockForest.

◆ getNumberOfZCells() [2/2]

uint_t walberla::domain_decomposition::StructuredBlockStorage::getNumberOfZCells ( const uint_t level = 0 ) const

inline

number of global cells in z direction (within the simulation domain on level "level")

◆ getProcessRank() [1/2]

uint_t walberla::domain_decomposition::StructuredBlockStorage::getProcessRank ( const IBlockID & id ) const

inline

◆ getProcessRank() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getProcessRank	(	uint_t &	rank,
		const IBlockID &	id
	)		const

inline

◆ getState() [1/2]

Set<SUID> walberla::domain_decomposition::StructuredBlockStorage::getState ( const IBlockID & id ) const

inline

◆ getState() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::getState	(	Set< SUID > &	state,
		const IBlockID &	id
	)		const

inline

◆ initializeCellBoundingBox()

CellInterval * walberla::domain_decomposition::StructuredBlockStorage::initializeCellBoundingBox ( IBlock *const block ) const

protected

◆ isCellAlignedAABB()

bool walberla::domain_decomposition::StructuredBlockStorage::isCellAlignedAABB	(	const AABB &	aabb,
		const uint_t	level = `0`
	)		const

Checks whether a given axis-aligned bounding box is aligned with the overlaying cell grid on level "level".

◆ isPeriodic()

bool walberla::domain_decomposition::StructuredBlockStorage::isPeriodic ( const uint_t index ) const

inline

◆ isXPeriodic()

bool walberla::domain_decomposition::StructuredBlockStorage::isXPeriodic ( ) const

inline

◆ isYPeriodic()

bool walberla::domain_decomposition::StructuredBlockStorage::isYPeriodic ( ) const

inline

◆ isZPeriodic()

bool walberla::domain_decomposition::StructuredBlockStorage::isZPeriodic ( ) const

inline

◆ loadBlockData()

template<typename T >

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::loadBlockData	(	const std::string &	file,
		const shared_ptr< T > &	dataHandling,
		const std::string &	identifier = `std::string()`,
		const Set< SUID > &	requiredSelectors = `Set<SUID>::emptySet()`,
		const Set< SUID > &	incompatibleSelectors = `Set<SUID>::emptySet()`
	)

inline

◆ mapToPeriodicDomain() [1/3]

void walberla::domain_decomposition::StructuredBlockStorage::mapToPeriodicDomain	(	Cell &	cell,
		const uint_t	level = `0`
	)		const

This function can be used to transform any cell on level "level" into the periodic cell simulation space.

For example, if the simulation is periodic in x direction and the simulation domain spans from x = 0 to x = 9, then a cell located at x = 38 is mapped to x = 8, and a cell located at x = -13 is mapped to x = 7.

◆ mapToPeriodicDomain() [2/3]

void walberla::domain_decomposition::StructuredBlockStorage::mapToPeriodicDomain	(	real_t &	x,
		real_t &	y,
		real_t &	z
	)		const

inline

◆ mapToPeriodicDomain() [3/3]

void walberla::domain_decomposition::StructuredBlockStorage::mapToPeriodicDomain ( Vector3< real_t > & p ) const

inline

◆ numberOfBlockDataItems()

uint_t walberla::domain_decomposition::StructuredBlockStorage::numberOfBlockDataItems ( ) const

inline

◆ operator!=()

bool walberla::domain_decomposition::StructuredBlockStorage::operator!= ( const StructuredBlockStorage & rhs ) const

inline

◆ operator==()

bool walberla::domain_decomposition::StructuredBlockStorage::operator== ( const StructuredBlockStorage & rhs ) const

inline

The following members are not used for checking if two StructuredBlockStorage objects are equal: blockCellBBId_.

◆ periodicIntersect() [1/2]

bool walberla::domain_decomposition::StructuredBlockStorage::periodicIntersect	(	const math::AABB &	box1,
		const math::AABB &	box2
	)		const

inline

◆ periodicIntersect() [2/2]

bool walberla::domain_decomposition::StructuredBlockStorage::periodicIntersect	(	const math::AABB &	box1,
		const math::AABB &	box2,
		const real_t	_dx
	)		const

inline

◆ resetCellDecomposition()

void walberla::domain_decomposition::StructuredBlockStorage::resetCellDecomposition	(	const std::vector< uint_t > &	xCells,
		const std::vector< uint_t > &	yCells,
		const std::vector< uint_t > &	zCells
	)

protected

◆ saveBlockData()

void walberla::domain_decomposition::StructuredBlockStorage::saveBlockData	(	const std::string &	file,
		const BlockDataID &	id
	)

inline

◆ serializeBlockData()

void walberla::domain_decomposition::StructuredBlockStorage::serializeBlockData	(	const BlockDataID &	id,
		mpi::SendBuffer &	buffer
	)

inline

◆ size()

uint_t walberla::domain_decomposition::StructuredBlockStorage::size ( ) const

inline

◆ transformBlockLocalToGlobal() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobal	(	Vector3< real_t > &	global,
		const IBlock &	block,
		const Vector3< real_t > &	local
	)		const

inline

Transforms the block local point "local" into the global point "global" (the global point is given with respect to the grid level the block "block" resides on).

◆ transformBlockLocalToGlobal() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobal	(	Vector3< real_t > &	point,
		const IBlock &	block
	)		const

inline

Transforms a block local point into a global point (the global point is given with respect to the grid level the block "block" resides on).

◆ transformBlockLocalToGlobalCell() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobalCell	(	Cell &	cell,
		const IBlock &	block
	)		const

inline

Transforms a block local cell coordinate into a global cell coordinate (the global cell is given with respect to the grid level the block "block" resides on).

◆ transformBlockLocalToGlobalCell() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobalCell	(	Cell &	global,
		const IBlock &	block,
		const Cell &	local
	)		const

inline

Transforms the block local cell coordinate "local" into the global cell coordinate "global" (the global cell is given with respect to the grid level the block "block" resides on).

◆ transformBlockLocalToGlobalCellInterval() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobalCellInterval	(	CellInterval &	global,
		const IBlock &	block,
		const CellInterval &	local
	)		const

inline

Transforms the block local cell interval "local" into the global cell interval "global" (the global cell interval is given with respect to the grid level the block "block" resides on).

◆ transformBlockLocalToGlobalCellInterval() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformBlockLocalToGlobalCellInterval	(	CellInterval &	interval,
		const IBlock &	block
	)		const

inline

Transforms a block local cell interval into a global cell interval (the global cell interval is given with respect to the grid level the block "block" resides on).

◆ transformGlobalToBlockLocal() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocal	(	Vector3< real_t > &	local,
		const IBlock &	block,
		const Vector3< real_t > &	global
	)		const

inline

Transforms a global point "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local point "local".

◆ transformGlobalToBlockLocal() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocal	(	Vector3< real_t > &	point,
		const IBlock &	block
	)		const

inline

Transforms a global point (assumed to be located on the same grid level than the block "block" resides on) into a block local point.

◆ transformGlobalToBlockLocalCell() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocalCell	(	Cell &	cell,
		const IBlock &	block
	)		const

inline

Transforms a global cell coordinate (assumed to be located on the same grid level than the block "block" resides on) into a block local cell coordinate.

◆ transformGlobalToBlockLocalCell() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocalCell	(	Cell &	local,
		const IBlock &	block,
		const Cell &	global
	)		const

inline

Transforms the global cell coordinate "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local cell coordinate "local".

◆ transformGlobalToBlockLocalCellInterval() [1/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocalCellInterval	(	CellInterval &	interval,
		const IBlock &	block
	)		const

inline

Transforms a global cell interval (assumed to be located on the same grid level than the block "block" resides on) into a block local cell interval.

◆ transformGlobalToBlockLocalCellInterval() [2/2]

void walberla::domain_decomposition::StructuredBlockStorage::transformGlobalToBlockLocalCellInterval	(	CellInterval &	local,
		const IBlock &	block,
		const CellInterval &	global
	)		const

inline

Transforms the global cell interval "global" (assumed to be located on the same grid level than the block "block" resides on) into the block local cell interval "local".

Friends And Related Function Documentation

◆ CellBoundingBoxHandling

friend class CellBoundingBoxHandling

friend

Member Data Documentation

◆ blockCellBBCreated_

bool walberla::domain_decomposition::StructuredBlockStorage::blockCellBBCreated_

private

flag for checking whether or not a cell bounding box has already been added as a block data "item" to all blocks

◆ blockCellBBId_

BlockDataID walberla::domain_decomposition::StructuredBlockStorage::blockCellBBId_

private

block data ID for accessing a block's cell bounding box

◆ blockStorage_

shared_ptr<BlockStorage> walberla::domain_decomposition::StructuredBlockStorage::blockStorage_

private

reference to an encapsulated object of type class BlockStorage (the object itself must be stored as a member in the derived class)

◆ domainCellBB_

std::vector< CellInterval > walberla::domain_decomposition::StructuredBlockStorage::domainCellBB_

private

cell bounding box for the entire simulation domain for every level (always starts at (0,0,0)) [min & max included!]

◆ dx_

std::vector< real_t > walberla::domain_decomposition::StructuredBlockStorage::dx_

private

for every level: ( domain x width ) / ( number of cells in x direction )

◆ dy_

std::vector< real_t > walberla::domain_decomposition::StructuredBlockStorage::dy_

private

for every level: ( domain y width ) / ( number of cells in y direction )

◆ dz_

std::vector< real_t > walberla::domain_decomposition::StructuredBlockStorage::dz_

private

for every level: ( domain z width ) / ( number of cells in z direction )

◆ levels_

uint_t walberla::domain_decomposition::StructuredBlockStorage::levels_

private

number of different grid levels managed by this block storage (every grid level has its own cell size dx/dy/dz)

The documentation for this class was generated from the following files:

/builds/administration/walberla-website/walberla/src/domain_decomposition/StructuredBlockStorage.h
/builds/administration/walberla-website/walberla/src/domain_decomposition/StructuredBlockStorage.cpp

Detailed Description

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Member Typedef Documentation

◆ const_iterator

◆ iterator

Constructor & Destructor Documentation

◆ StructuredBlockStorage() [1/2]

◆ ~StructuredBlockStorage()

◆ StructuredBlockStorage() [2/2]

Member Function Documentation

◆ addBlockData() [1/3]

◆ addBlockData() [2/3]

◆ addBlockData() [3/3]

◆ addCellBoundingBoxesAsBlockData()

◆ addStructuredBlockData() [1/2]

◆ addStructuredBlockData() [2/2]

◆ atDomainMaxBorder()

◆ atDomainMinBorder()

◆ atDomainXMaxBorder()

◆ atDomainXMinBorder()

◆ atDomainYMaxBorder()

◆ atDomainYMinBorder()

◆ atDomainZMaxBorder()

◆ atDomainZMinBorder()

◆ begin() [1/2]

◆ begin() [2/2]

◆ blockExists() [1/4]

◆ blockExists() [2/4]

◆ blockExists() [3/4]

◆ blockExists() [4/4]

◆ blockExistsLocally() [1/4]

◆ blockExistsLocally() [2/4]

◆ blockExistsLocally() [3/4]

◆ blockExistsLocally() [4/4]

◆ blockExistsRemotely() [1/4]

◆ blockExistsRemotely() [2/4]

◆ blockExistsRemotely() [3/4]

◆ blockExistsRemotely() [4/4]

◆ clearBlockData()

◆ containsGlobalBlockInformation()

◆ createCellBoundingBoxes()

◆ deserializeBlockData()

◆ empty()

◆ end() [1/2]

◆ end() [2/2]

◆ equal()

◆ getAABB() [1/2]

◆ getAABB() [2/2]

◆ getAABBFromCellBB() [1/2]

◆ getAABBFromCellBB() [2/2]

◆ getAllBlocks()

◆ getBlock() [1/10]

◆ getBlock() [2/10]

◆ getBlock() [3/10]

◆ getBlock() [4/10]

◆ getBlock() [5/10]

◆ getBlock() [6/10]

◆ getBlock() [7/10]

◆ getBlock() [8/10]

◆ getBlock() [9/10]

◆ getBlock() [10/10]

◆ getBlockCellBB()

◆ getBlockCellBBId()

◆ getBlockDataIdentifier()

◆ getBlockDataIdentifiers()

◆ getBlockID() [1/3]

◆ getBlockID() [2/3]

◆ getBlockID() [3/3]

◆ getBlockLocalCell() [1/4]

◆ getBlockLocalCell() [2/4]

◆ getBlockLocalCell() [3/4]

◆ getBlockLocalCell() [4/4]

◆ getBlockLocalCellAABB() [1/2]

◆ getBlockLocalCellAABB() [2/2]
